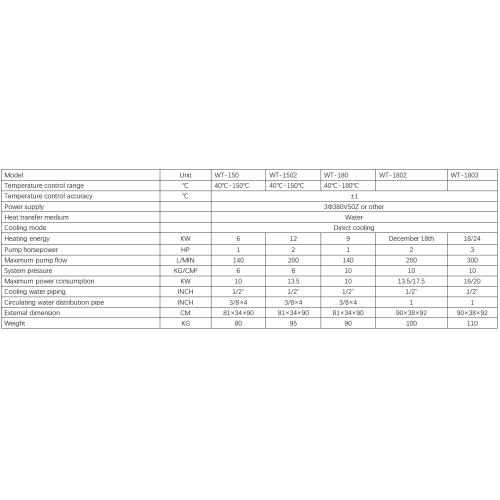

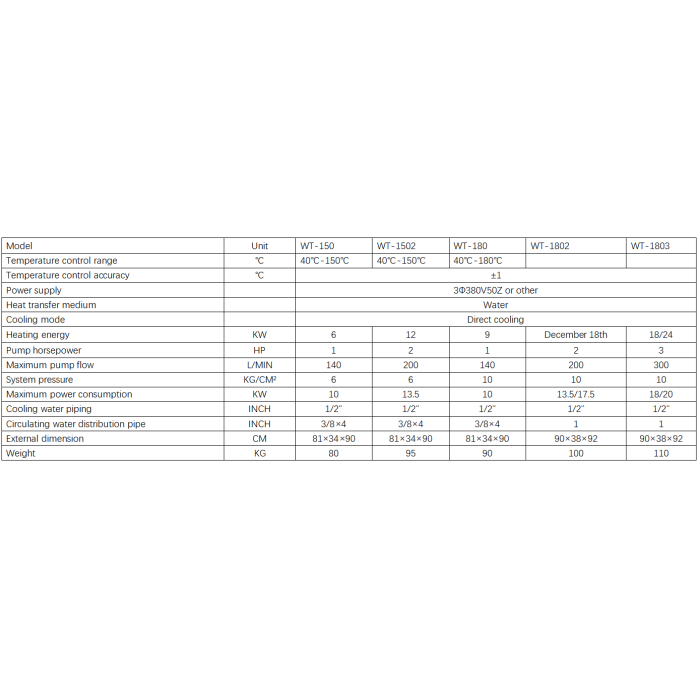

| Model | WT-150 | WT-1502 | WT-180 | WT-1802 | WT-1803 |
|---|---|---|---|---|---|
| Temperature Control Range (°C) | 40–150 | 40–150 | 40–180 | 40–180 | 40–180 |
| Temperature Control Accuracy (°C) | ±1 | ±1 | ±1 | ±1 | ±1 |
| Power Supply | 3Φ380V 50Hz or other | 3Φ380V 50Hz or other | 3Φ380V 50Hz or other | 3Φ380V 50Hz or other | 3Φ380V 50Hz or other |
| Heat Transfer Medium | Water | Water | Water | Water | Water |
| Cooling Mode | Direct Cooling | Direct Cooling | Direct Cooling | Direct Cooling | Direct Cooling |
| Heating Energy (KW) | 6 | 12 | 9 | 18 | 18/24 |
| Pump Horsepower (HP) | 1 | 2 | 1 | 2 | 3 |
| Max Pump Flow (L/min) | 140 | 200 | 140 | 200 | 300 |
| System Pressure (KG/CM²) | 6 | 6 | 10 | 10 | 10 |
| Max Power Consumption (KW/H) | 10 | 13.5 | 10 | 13.5/17.5 | 18/20 |
| Cooling Water Pipe (Inch) | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Circulating Water Pipe (Inch) | 3/8×4 | 3/8×4 | 3/8×4 | 1" | 1" |
| External Dimensions (CM) | 81×34×90 | 81×34×90 | 81×34×90 | 90×38×92 | 90×38×92 |
| Weight (KG) | 80 | 95 | 90 | 100 | 110 |
